Shoring · North Texas
Shoring Services in Dallas-Fort Worth & North Texas
Holding the ground back so the work below it can happen safely. IRONWILL Earthworks selects, installs and removes shoring for excavations from shallow utility trenches to deep structural cuts beside buildings that have to stay exactly where they are.
Trench shoring
Trench shields
Soldier pile & lagging
Adjacent-structure support
OSHA-compliant
Dallas-based
On site when the excavation opens
Support, not just protection
The right system for what has to stay put
Competent-person discipline
Inspected daily, not occasionally
Shoring through excavation
One contractor from cut to backfill
Why it exists
An unsupported trench wall gives no warning
Excavation collapse is not a gradual failure. There is no sag and no creak beforehand — a wall that has stood all week fails in a second, and anyone in the trench has no time to move. That is why the rules governing excavation are unusually prescriptive, and why the inspections are daily rather than occasional.
IRONWILL Earthworks is a North Texas earthwork contractor. We handle shoring as part of the same scope as the excavation itself, which means the support system is selected against the actual soil and the actual surroundings rather than specified generically and discovered to be wrong on day one.
Below: what shoring is, why a trench box is not the same thing, which systems suit which conditions, how soil classification drives all of it, and what OSHA and Texas law actually require. If you have an excavation coming up, send us the depth and what is next to it.
Definition
What is shoring?
Shoring is a support system installed against the walls of an excavation to stop them from moving. OSHA defines a shoring system as a structure — hydraulic, mechanical or timber — that supports the sides of an excavation and is designed to prevent cave-ins. It holds the ground where it is, so the trench keeps the shape it was dug.
That distinction — preventing movement rather than surviving it — is the whole point, and it is what makes shoring the answer whenever something beside the excavation cannot be allowed to shift. A building foundation. A slab you are going to build on. A road carrying traffic. A live gas or water main running parallel to the cut.
It is also what makes shoring the enabler on constrained sites. Supporting the walls means the excavation can be cut vertically instead of laid back at a slope, which is frequently the difference between a job that fits inside the property line and one that does not.
Often confused
Shoring vs. shielding — what’s the difference?
A trench box is not shoring. It protects the crew inside it; it does not stop the wall from coming in.
Shoring
A structure that supports the sides of an excavation and is designed to prevent a cave-in. Hydraulic, mechanical or timber, installed tight against the wall so the soil does not move in the first place.
Shielding (trench box)
A structure able to withstand the forces imposed on it by a cave-in and thereby protect the workers inside it. It does not stop the wall from failing — it keeps people alive when it does.
Which one you need — IRONWILL
If the only thing at stake is crew protection in open ground, a shield is often the fastest answer. If anything beside the trench has to stay put — a building, a road, a live utility, a slab — you need shoring, because a box protects people and lets the ground move anyway.
Both are legitimate protective systems under OSHA and both turn up on the same job. The mistake is treating them as interchangeable — specifying a box alongside a building that will not tolerate settlement, or paying for engineered shoring in open ground where a shield would have done the job for a fraction of the cost.
Systems
Shoring systems we install

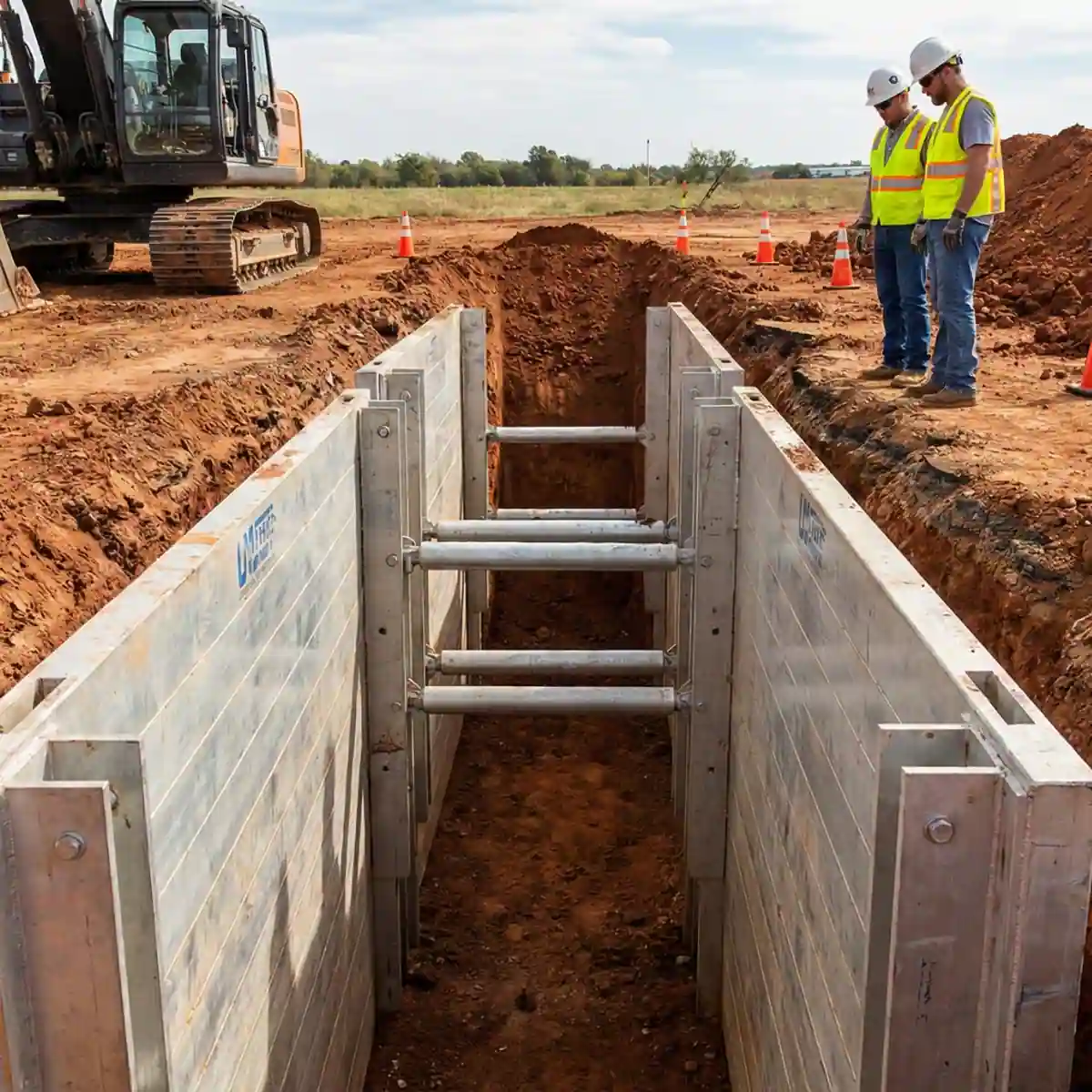

Hydraulic shoring
Aluminum hydraulic cylinders and rails pressurized against the trench walls. Installed and released from outside the excavation, adjustable as depth changes, and the usual answer for utility and drainage trenching.
Trench shields and boxes
Steel or aluminum boxes lowered into the trench to protect the crew working inside. Fast, reusable and appropriate wherever the surrounding ground is free to move without consequence.
Slide rail systems
Panels and posts installed progressively as the excavation deepens, so a pit can be dug and supported in stages. Useful in tight footprints and for openings larger than a box will span.

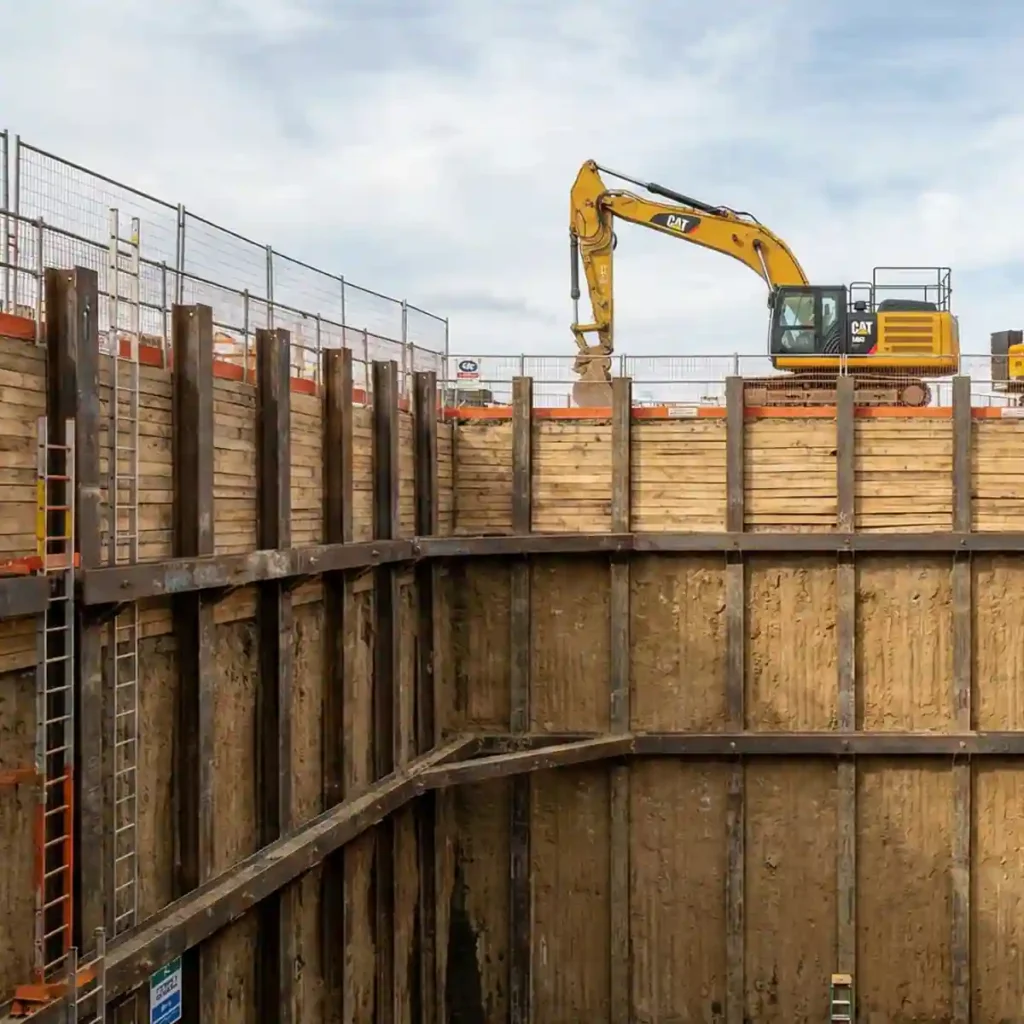

Soldier pile and lagging
Vertical piles set at intervals with lagging placed between them as the cut advances. The workhorse for deeper excavations and anywhere a wall has to hold for weeks rather than hours.
Sheet piling
Interlocking sheets driven before excavation begins, used where groundwater, loose material or an adjacent structure rules out any wall movement at all.
Adjacent-structure support
Systems designed around what is next to the hole — foundations, slabs, roadways and live utilities that have to stay exactly where they are while the cut goes past them.
Soil decides
The soil type sets the system — and clay is rarely as good as it looks
OSHA classifies soil as stable rock or Type A, B or C, and that classification drives everything downstream: the slope allowed if you are laying the cut back, the systems that are acceptable if you are not, and what the whole thing costs. Maximum allowable slopes run from 3/4:1 for Type A, to 1:1 for Type B, to 1½:1 for Type C.
Dallas-Fort Worth clay reads as a strong cohesive soil and then fails to qualify as Type A in the field. Under Subpart P, soil cannot be Type A if it is fissured, subject to vibration from heavy traffic or pile driving, previously disturbed, or part of a layered system dipping into the excavation. Dried clay fissures. A trench inside an existing utility corridor is disturbed ground. A cut beside a live road is subject to vibration. Most metroplex work ends up designed as Type B or Type C, and budgets that assumed otherwise get adjusted the hard way.
Classification made in the field by the competent person
Previously disturbed ground never qualifies as Type A
Fissured clay and traffic vibration both rule out Type A
Water seeping into the wall downgrades it immediately
Layers dipping into the cut are treated as Type C
Reclassified after rain — a daily judgment, not a one-off
The rules
What OSHA and Texas actually require
Excavation safety is one of the most prescriptive areas in construction regulation, and the thresholds are specific numbers rather than judgment calls. Knowing them before the work is priced is the difference between a compliant job and a stopped one.
Five feet
A protective system is required in any excavation five feet or deeper, unless it is made entirely in stable rock. Below five feet a competent person may determine that no system is needed — but that is a determination somebody makes and stands behind, not a default.
Twenty feet
Excavations deeper than twenty feet require a protective system designed by a registered professional engineer. That design is a lead item on the schedule and it is not something anyone can decide in the field.
The competent person
Daily inspections of the excavation, the adjacent areas and the protective systems are required — before work starts, as conditions change through the shift, and after every rainstorm. The competent person must have authority to stop work and correct what they find.
Texas pay item
Under Texas Health and Safety Code Chapter 756, construction contracts involving trench excavation deeper than five feet must reference the applicable OSHA standards and include a separate pay item for trench safety protection, based on the linear feet of trench excavated.
Two more that get missed regularly: a ladder, ramp or stairway within twenty-five feet of lateral travel in any trench four feet or deeper, and spoil kept at least two feet back from the edge. Neither costs anything to plan for and both are common citations. If the subsurface has not been investigated yet, that is where site analysis starts.
How it works
Our shoring process
Shoring is decided before the excavator starts, not after the wall starts sloughing. This is the order we work in so the system matches the ground and the schedule is not waiting on an engineer.
01
Excavation and site review
Depth, footprint, soil, groundwater and access — and the part that decides most of it, what is next to the hole and whether it can be allowed to move at all.
02
Soil classification
Classification made in the field, against the geotechnical report where one exists. This is what determines which systems are acceptable and how the excavation has to be cut.
03
System selection and design
The right system chosen for the depth, the soil and the surroundings. Anything deeper than twenty feet goes to a registered professional engineer for design before mobilization, not during it.
04
Installation
Systems installed and released from outside the excavation wherever the method allows, in sequence with the cut — so nobody is standing in an unsupported trench to install the thing that supports it.
05
Daily inspection and monitoring
Competent-person inspection before every shift, through the shift as conditions change, and after rain. Wall movement, water and spoil placement are the three things that change fastest.
06
Removal and backfill
Shoring removed in the correct sequence as backfill goes in or the permanent structure takes the load. Pulling support out of a trench is as hazardous as putting it in, and it gets planned the same way.
Why it matters
What shoring is actually holding up
The obvious answer is the trench wall. The real answer is everything that depends on that wall staying where it is: the crew in the excavation, the building on the other side of the property line, the road carrying traffic a few feet away, and the live main nobody wants to find the hard way.
There is a second benefit that gets overlooked on constrained sites. A supported wall can be cut vertically instead of laid back at a slope, which means a smaller footprint, less material moved and less backfill — and frequently an excavation that fits where a sloped one simply would not.
Crews protected in the excavation, every shift
Adjacent buildings, slabs and roads held in place
Live utilities protected from soil movement
Deeper, narrower cuts possible on tight sites
Compliance documented rather than assumed
Less over-excavation, less backfill, fewer stoppages
Have an excavation that needs support?
Send the depth, the footprint, what the soil is and what sits next to the hole. We will tell you which system fits, whether it needs engineer design, and what it costs to install, inspect and pull.
Who we work for
Projects we support
From a shallow utility trench to a deep structural cut beside an occupied building, the question is the same: how deep, what soil, and what is next to it that cannot be allowed to move.

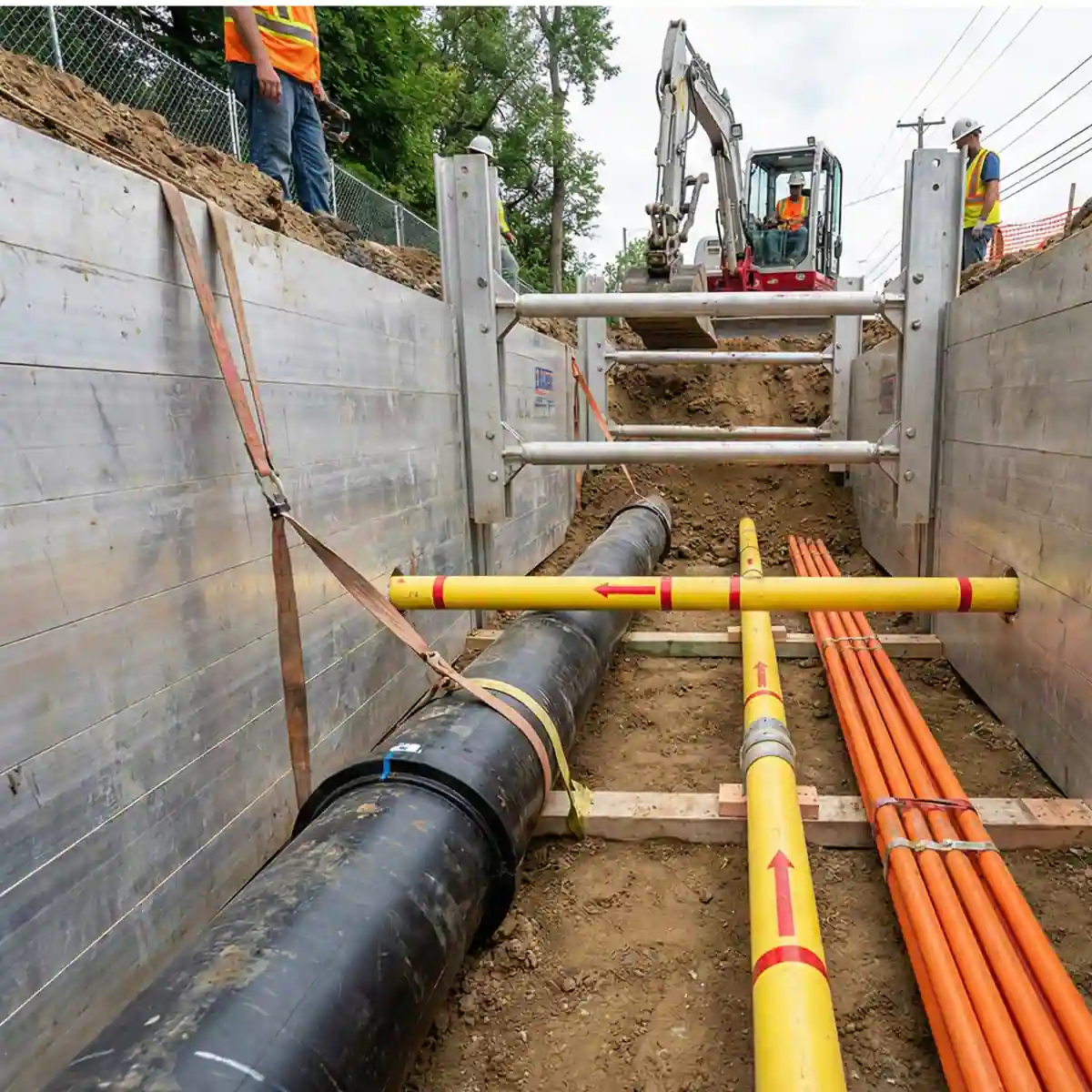

Utility trenching
Water, sewer, storm and dry utility runs where the trench has to stay open long enough to lay, joint and test the line.
Foundation and structural excavations
Pits and cuts for footings, pile caps, elevator shafts and below-grade structure, where the excavation is a work area rather than a passage.
Drainage and stormwater systems
Deep storm lines, inlets, junction boxes and outfalls — typically the deepest cuts on a site and often the wettest.

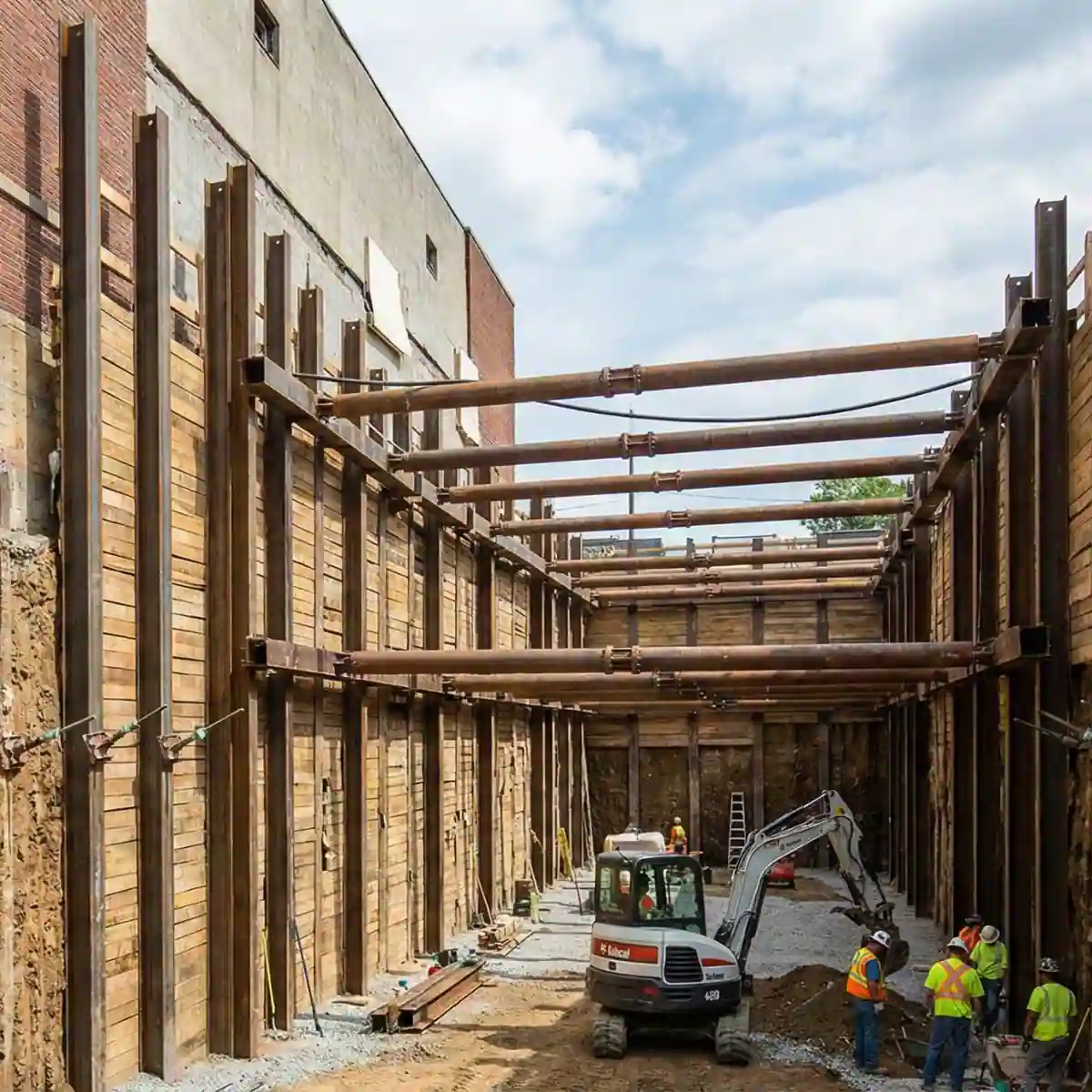

Excavation adjacent to existing structures
Cuts alongside buildings, slabs and pavement that have to stay exactly where they are, which is where shoring stops being optional.
Infrastructure and roadway work
Excavation within or beside live traffic, where vibration downgrades the soil and the roadway itself has to be supported.
Confined and restricted sites
Infill and urban work with no room to lay a slope back, including cuts staged with selective demolition on the same footprint.
The IRONWILL difference
How we approach shoring
Safety-first execution
Worker protection is the constraint the rest of the plan is built around.
Right-sized systems
Shoring matched to the depth, the soil and what is adjacent — not over-specified.
Soil and site judgment
Classification made in the field, where fissures, water and disturbance actually show.
Integrated with the excavation
Shoring sequenced with the dig and the backfill under one contractor.
Service area
Shoring across Dallas-Fort Worth and North Texas
We install shoring on commercial, residential, industrial and municipal sites throughout North Texas — utility trenching, structural excavation and work alongside buildings that have to keep standing. Crews and equipment are based in Dallas.
If your site is in or around the metroplex, ask — it is usually in range.
Allen
Lucas
Melissa
Richardson
Lewisville
The Colony
Prosper
Celina
Little Elm
Rockwall
Mesquite
Grapevine
Flower Mound
Weatherford
Kaufman
Waxahachie
Wylie
Sherman
Collin County
Send with your inquiry
→
Site address and excavation depth
→
Trench length or pit footprint
→
Soil information or geotechnical report
→
What is adjacent — structures, roads, utilities
→
How long the excavation has to stay open
FAQ
Shoring FAQ
What is shoring in construction?
Shoring is a support system installed against the walls of an excavation to stop them from moving. OSHA defines a shoring system as a structure — hydraulic, mechanical or timber — that supports the sides of an excavation and is designed to prevent cave-ins. It holds the ground in place so the excavation keeps the shape it was dug.
What is the difference between shoring and a trench box?
Shoring prevents a cave-in by supporting the excavation wall. A trench box is a shield: it is built to withstand the forces of a cave-in and protect the workers inside it, but it does not stop the wall from failing. Both are valid protective systems, but only shoring keeps the surrounding ground — and anything sitting on it — from moving.
At what depth is shoring or a protective system required?
A protective system is required in any excavation five feet or deeper unless it is made entirely in stable rock. In excavations less than five feet deep, a competent person may determine that no system is needed based on an examination of the ground, but that is an affirmative determination rather than an assumption.
When does shoring have to be designed by an engineer?
Excavations deeper than twenty feet require a protective system designed by a registered professional engineer. Manufactured systems can also require engineer involvement beyond their tabulated limits. Because the design has to exist before the excavation is opened, it belongs on the preconstruction schedule rather than the field one.
What are OSHA soil types A, B and C?
They are the soil classifications that drive protective system selection. Type A is the most stable cohesive soil, Type B is intermediate, and Type C is the least stable — including granular soils and anything with water seeping from it. The maximum allowable slopes are 3/4:1 for Type A, 1:1 for Type B and 1½:1 for Type C.
Is Dallas-Fort Worth clay Type A soil?
Often not, despite being strong cohesive clay. Soil cannot be classified as Type A if it is fissured, subject to vibration from heavy traffic or pile driving, previously disturbed, or part of a layered system dipping into the excavation. Dried metroplex clay fissures, trenches in existing utility corridors are disturbed ground, and cuts beside live roads are subject to vibration — so a great deal of local work is designed as Type B or Type C.
Who is the competent person and what do they do?
The competent person is the individual responsible for classifying the soil, inspecting the excavation and its protective systems, and identifying hazards — with the authority to stop work and take corrective action. Inspections are required daily before work begins, as conditions change during the shift, and after every rainstorm.
Is trench safety a separate line item on Texas projects?
It is on many of them. Under Texas Health and Safety Code Chapter 756, construction contracts involving trench excavation deeper than five feet must reference the applicable OSHA standards and include a separate pay item for trench safety protection, based on the linear feet of trench excavated. It is not meant to be buried inside the excavation price.
What shoring systems do you use?
Hydraulic shoring for most utility and drainage trenching, trench shields where the surrounding ground is free to move, slide rail for staged pits in tight footprints, and soldier pile and lagging or sheet piling for deeper cuts and anywhere adjacent structures cannot tolerate movement. The system follows the depth, the soil and what is beside the excavation.
Can shoring be handled together with the excavation?
Yes, and it is usually better that way. When the same contractor is doing the digging, the support system is selected against the soil that is actually there, installed in sequence with the cut, inspected by people who are on site anyway, and pulled in the right order as backfill goes in.
